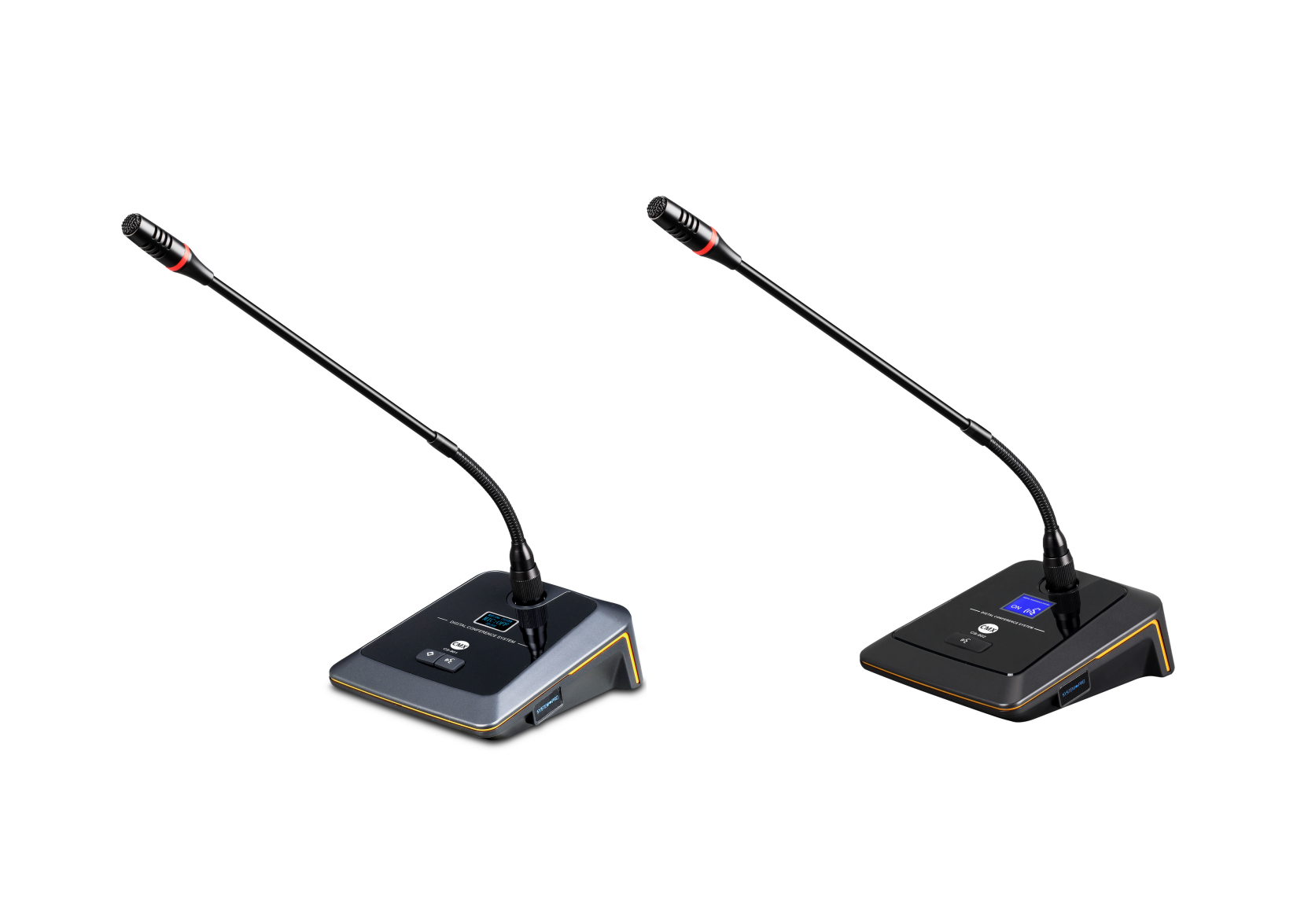

CS-901 CAT6 Chairman Unit CS-902 CAT6 Delegate Unit
CAT6 Digital Conference System
CS-901, CAT6 Chairman Unit
CS-902, CAT6 Delegate Unit
Features:
Digital conference system microphone system of discussion function.
CS-901 is chairman unit with priority over CS-902 delegate unit.
Digital conference system by CAT6 cable and RJ45 port, 8 wired cable and 8 PIN connector as spare use.
Super cardioid directive condenser pickup
Special anti-jamming circuit design without interference with mobile, wi-fi, Bluetooth and radio system.
Each controller supports 10 chairman microphones and 100 delegate microphones.
Support multiple discussion modes: free, first in first out, and limited discussion.
Support free discussion quantity of 1, 2, 3 and 5.
With round ring indicator will be light on when microphone on.
Human voice pick up distance up to 15-60cm.
Flexible gooseneck microphone of black color.
Each microphone with volume attenuator.
With 0.96” OLED to display the ID and working status.
Power supply direct from digital conference system controller CS-900.
Specification:
|
Model |
CS-901 |
CS-902 |
|
Description |
CAT6 Chairman Unit |
CAT6 Delegate Unit |
|
System Capacity |
100 units and 1000 units by cascaded more extension controller |
|
|
Connection Way |
Hand in hand |
|
|
Power Supply |
DC24V by controller CS-900 |
|
|
Voice Pickup Distance |
15-60cm |
|
|
Sensitivity |
-44dB±2dB |
|
|
Max SPL |
125dB |
|
|
THD |
<0.05% |
|
|
S/N Ratio |
>80dB |
|
|
Frequency Response |
30Hz-20KHz |
|
|
Impedance |
2k Ohm |
|
|
Direction |
0°/180°>20dB, 1kHz |
|
|
Indicator |
Red round ring indicator light on when microphone on |
|
|
Gooseneck Length |
400mm |
|
|
Display |
0.96” OLED to display the ID and working status. |
|
|
Connector |
One RJ45 port by CAT6 cable and one 8 PIN port as spare use |
|
|
Finish |
ABS in black |
|
|
Dimension |
150(W)×135(D)×53(H)mm |
|
|
Weight |
0.7kg |
|
