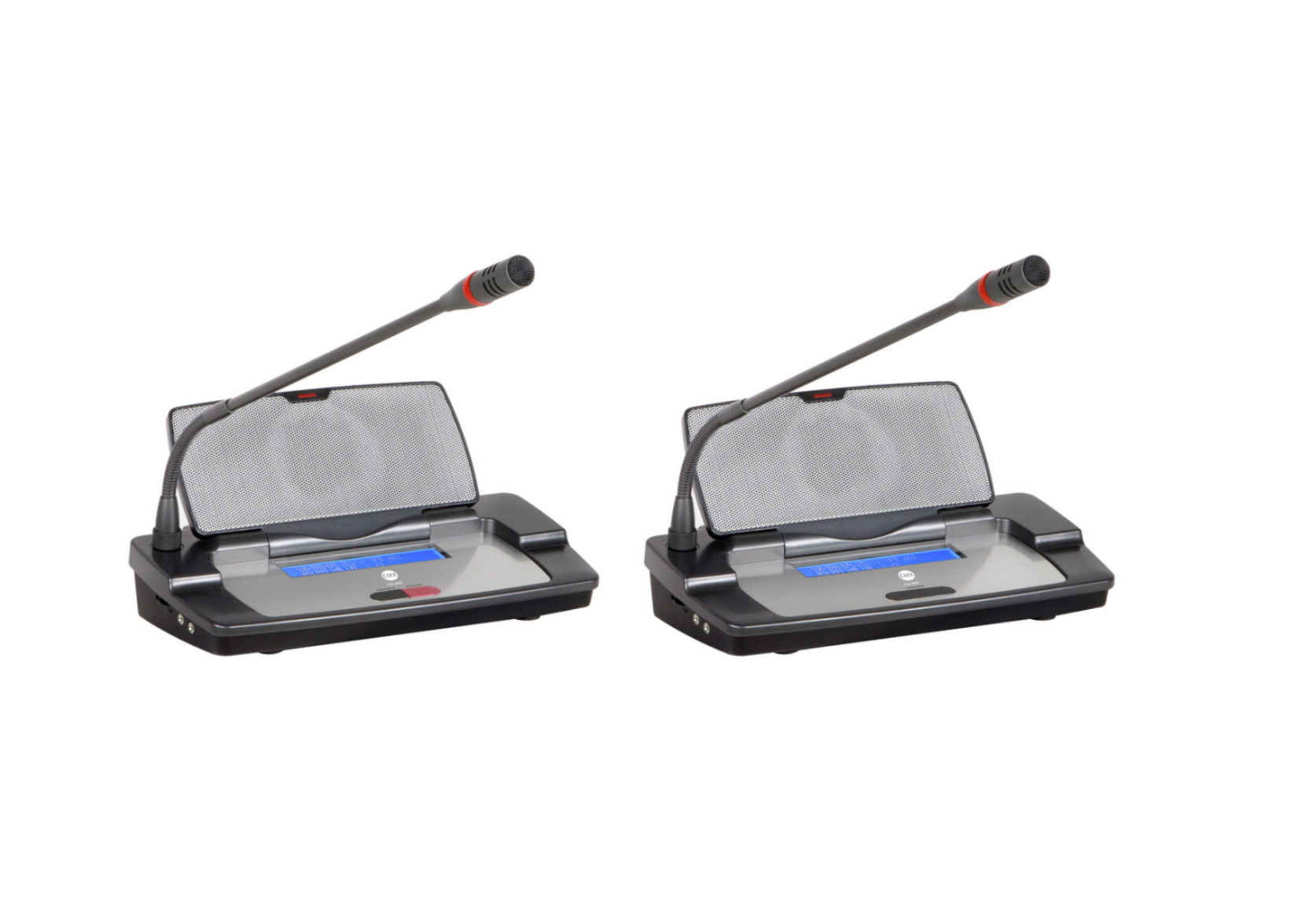

CS-603 Discussion Chairman Unit CS-604 Delegate Unit
CS-603 Discussion Chairman Unit
CS-604 Discussion Delegate Unit
Features:
Discussion chairman and delegate unit for audio conference system CS-600U.
Classic range and excellent voice restoration system.
Ideal for board room, meeting room, conference room in hotel, office & government.
System capacity is 60 units and max 250 units by cascaded more extension controller.
Tabletop deign microphone type with cover for easy mobile installation.
Built-in 2” colorful LCD display ID and status.
Chairman unit with priority over delegate unit when speech.
Chairman unit with one red priority button except one microphone on button.
Chairman unit can turn off the delegate unit speech.
The system support only chairman speech mode without any interruption from others. Delegate units could speech only after the chairman unit exit the “Chairman Mode”.
Support multiple discussion modes: free, first in first out, and limited discussion.
Support free discussion quantity of 1, 2, 3 and 5.
Built-in 3W hi-fi monitor speaker, which will be automatically off for a while when microphone is on.
With one 3.5mm earphone input.
With monitor speaker volume control.
With round ring indicator will be light on when microphone on.
Gooseneck length of 350mm, other length could be customized without addition cost.
Specifications:
|
Model |
CS-603 |
CS-604 |
|
Description |
Chairman Unit |
Delegate Unit |
|
System Capacity |
60 units and 250 units by cascaded more extension controller |
|
|
Connection Way |
Bus way, each microphone unit connected to the main line |
|
|
Power Supply |
DC24V by controller |
|
|
Voice Pickup Distance |
15-50cm |
|
|
Sensitivity |
-44dB±2dB |
|
|
Frequency Response |
40Hz-16KHz |
|
|
Monitor |
Built-in 3W monitor speaker with output volume control |
|
|
Control |
One 3.5mm earphone input |
|
|
Indicator |
Red round ring indicator light on when microphone on |
|
|
Button |
One microphone on in black and one priority in red |
|
|
Gooseneck Length |
350mm |
|
|
Finish |
ABS in black |
|
|
Cable |
2 meters cable with T-shaped plug are included |
|
|
Dimension |
245(W)×140(D)×48(H)mm |
|
|
Weight |
1kg |
|
