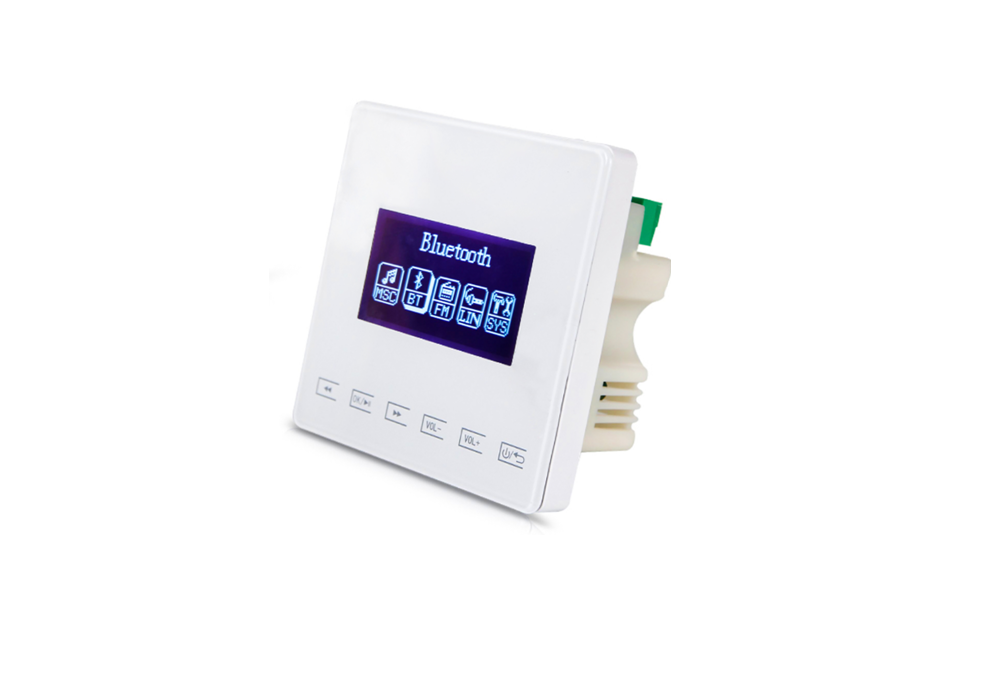

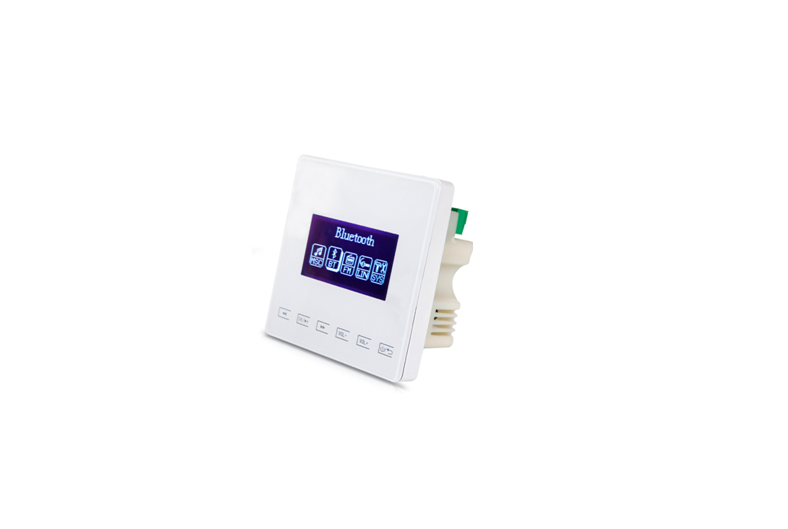

A5Z In Wall Amplifier with Bluetooth/USB/FM 4 x 15W
- Bluetooth wireless connectivity
- 4x 15 watts output
- Internal USB/SD media player and FM tuner
- Supplied with I.R. remote control
- LCD English display the music title and music number
- Volume control through panel keys or the supplied remote control
- 5 program of timer to scheduled power on/off
- 30 levels of attenuation through remote control or key functions on front panel
- Memory setting, with contact for door bell and remote trigger broadcast
Description:
Compact audio controller with 4x 15W digital stereo amplifiers built into a single gang wall plate. Powered directly from 100-240V mains supply, the wall mount amplifier can be installed into a partition wall or 57mm back box and provides a minimal yet fully functional control surface. The on wall amplifier has an inbuilt USB/Micro SD audio player, an FM tuner and Bluetooth receiver. Key functions are operated from the front panel or by using the supplied IR remote control. Connections for 2 low impedance speakers, mains power, FM antenna and up to 2 external line inputs are provided at the rear on screw terminal phoenix connectors. A complete and versatile audio solution for wall or ceiling background music speakers in the home or commercial audio applications
Specification:
|
Model |
A5Z |
|
Description |
In-Wall Amplifier with Bluetooth/USB/FM |
|
Power Supply |
100-240V AC, 50/60Hz (screw terminal) |
|
Rated Power Output |
4×15W@ 8 ohms |
|
Audio Format |
mp3, wma, wav, flac, ape, dts, aac, ac3, ogg |
|
Video Format |
Mpeg-1/2/3/4, rm/rmvb, wmv, mov, mk, vob, avi, 3gp, h.264 |
|
FM Range |
87.5-108mHz |
|
Distance |
IR remote control & Bluetooth distance up 20 meters |
|
Frequency Response |
20Hz~20KHz (at±0.3dB) |
|
THD |
<0.03% at 1kHz, 1W |
|
SN Ratio |
>98dB |
|
Volume |
Bass: ±15dB; Treble: ±15dB |
|
Display |
2.8” English display, 320×240 resolution |
|
Power Supply |
AC 220~240V, 50/60Hz |
|
Dimension |
86 x 86 x 50mm |
|
Mounting |
86 x 86 x 57mm |
|
Weight |
128g |
