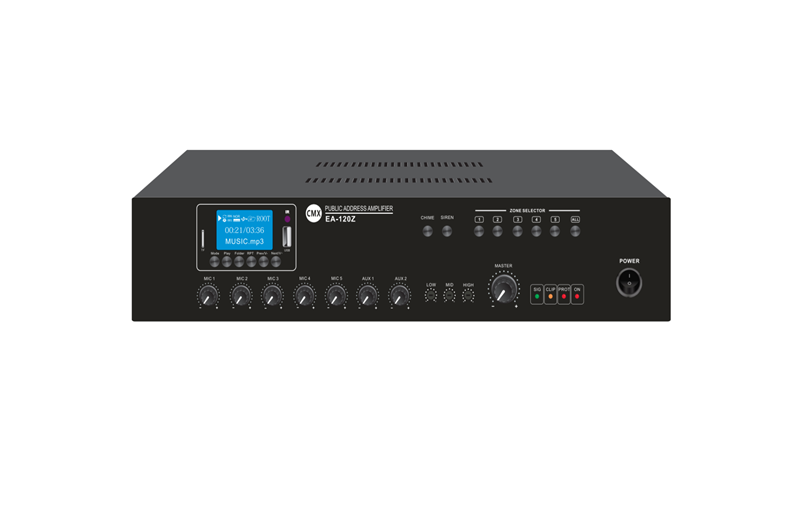

5 Zone Mixer Amplifier with USB/SD/FM/Blue Tooth EA-60Z/EA-120Z/EA-240Z/EA-350Z/EA-500Z/EA-650Z
Features:
Tabletop 5 zone mixer amplifier with Mp3 player, FM radio & blue tooth
Rate power output at 60W, 120W, 240W, 350W, 500W& 650W
5 zone speaker outputs 100V & single zone speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
EXT Chime for closed trigger input to activate the 4 tone chime and siren
Mic1 priority &mute level attenuator
Phanton power for Mic1 & Mic 2
7 Inputs includes Mic1-5 XLR inputs and Aux 1-2 inputs
Amp input and Pre output for external amplifier link
EQ of low, middle, high and master tone control
Complete amplifier protection includes short-circuit, clip, overload and high temp
Specification:
|
Model |
EA-60Z |
EA-120Z |
EA-240Z |
EA-350Z |
EA-500Z |
EA-650Z |
|
Description |
5 Zone Mixer Amplifier with USB/SD/FM/Blue Tooth |
|||||
|
Rated Power Output |
60W |
120W |
240W |
350W |
500W |
650W |
|
Speaker Outputs |
100V or 70V & 4 Ohm-8 Ohm-16 Ohm 5 Zone speaker outputs 100V |
|||||
|
Connector |
Mic1-5 input by balanced XLR; Aux 1 RCA input, Aux 2 6.3mm phone jack input Amp input 6.3mm phone jack, Pre Output 6.3mm phone jack EXT Chime for closed trigger input to activate the 4 tone chime and siren Mic1 Mute attenuator, Mic1-2 +48V phantom power on/off dipswitch |
|||||
|
Input |
MIC1-5: 5-8mV, 600Ω; Aux 1-2, 150-470mV, 10KΩ |
|||||
|
Line Out |
0.775(0dBV) |
|||||
|
Frequency Response |
60Hz-15kHz(±3dB) |
|||||
|
S/N Ratio |
Line ≥ 85dB, Mic≥ 72dB |
|||||
|
THD |
Less than 0.5% |
|||||
|
Protection |
Short-circuit, clip, overload and high temp protection |
|||||
|
Power Consumption |
80W |
150W |
310W |
450W |
650W |
800W |
|
Power Supply |
AC230V; 50-60Hz |
|||||
|
Dimension |
484×350×88mm |
|||||
|
Weight |
7.0kg |
7.1kg |
8.6kg |
8.7kg |
8.9kg |
9.2kg |
