Wireless Conference System WM-U400
Wireless Conference System
WM-U400
Description:

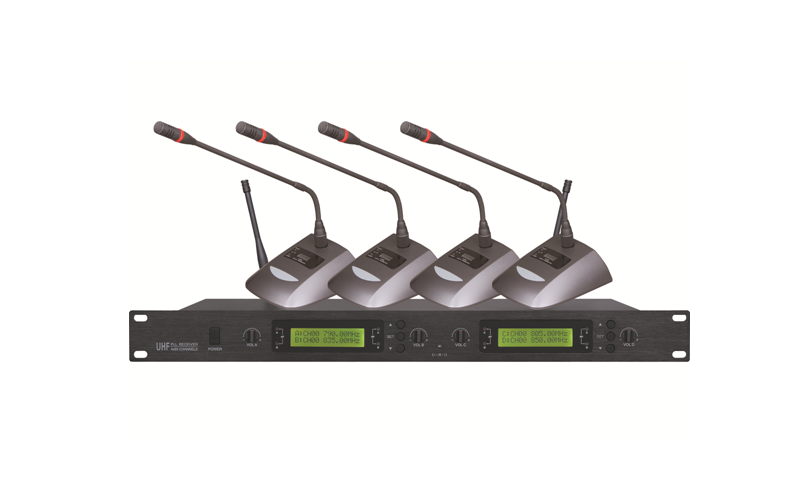

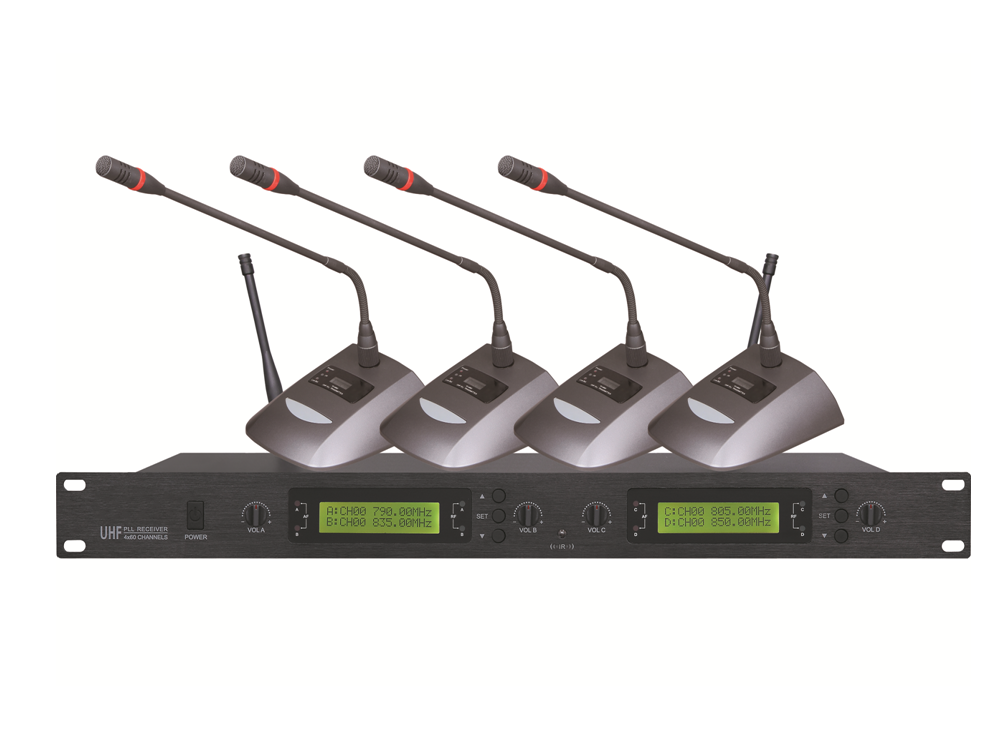

The 4 channel UHF wireless conference system comes with one receiver and 4 tabletop microphones. The CMX 4 channel wireless conference system is a professional and commercial grade UHF system. It supports up to 256 individual channels to be used simultaneously (multiple receivers required, 64 point x 4 band = 256channels). This is perfect for any situation where multiple microphones are required. This system provides the quality and durability required in venues such as small room conference system or meeting system, which offers cost-effective solution and high reliable system. Provisions for rack mounting are built-in for convenience
Features:
4 channel UHF wireless conference system
One controller and 4 tabletop microphones
Suitable for compact wireless conference system for small board room & meeting room
UHF wireless technology to avoid any cable wiring and of easy portability system
Supports up to 256 individual channels to be used simultaneously
No interference between two tabletop microphone
Infrared frequency synchronization
UHF band with PLL digital frequency synthesis
High sensitivity to meet the outdoor long-range performance requirements
Eight separate channel receiver with large and clear LCD display
Frequency indicator, signal strength indicator, microphone sound level indicator
High-fidelity output
Standard 1U rack mount design
Zinc alloy drop resistance tube
Anti-collision microphone mesh head
Anti-whistle dynamic cartridge
Quality microphone core
Exchangeable transmitter
Transmitter high/low power switcher, high power for longer distance, switch to low power to save battery
Battery status indicator
Low battery alarm
Options: Lavaliere Mic or Headset Mic or Handheld Mic
Applications: Board room, conference hall, class room, conventional center and religious gathering.
Specifications:
Frequency range: UHF550-980MHz
Total number of 256 frequency points
Dynamic range: 110dB
THD: 0.5%
Frequency response: 35Hz to 20KHz ± 3dB
Signal-to-noise ratio: 90dB
Effective distance: 100-150M
Transmitter:
Transmit power: 10mmW
Oscillation mode: PLL digital Frequency Synthesizer
Modulation method: FM
Image rejection: 50dB
Frequency Modulation: 75Hz
Channel conversion mode: touch switch / infrared frequency synchronization
Voltage: 3V DC (2 AA batteries)
Receiver:
Sensitivity: 2.0uV
Oscillation mode: PLL digital Frequency Synthesizer
Signal-to-noise ratio: 90dB
Distortion: 0.5%
Channel conversion mode: touch switch buttons
Outputs: 4 balanced output, a 6.35-mixed output
Output Voltage: balanced output: 500mV, mixed output: 350mV (30kHz modulation)
Power: 110-240V, 50-60Hz (for both USA and Europe standard)
Receiver size: 420 × 190 × 44mm, standard 19-inch 1U rack mount case
