FEATURES

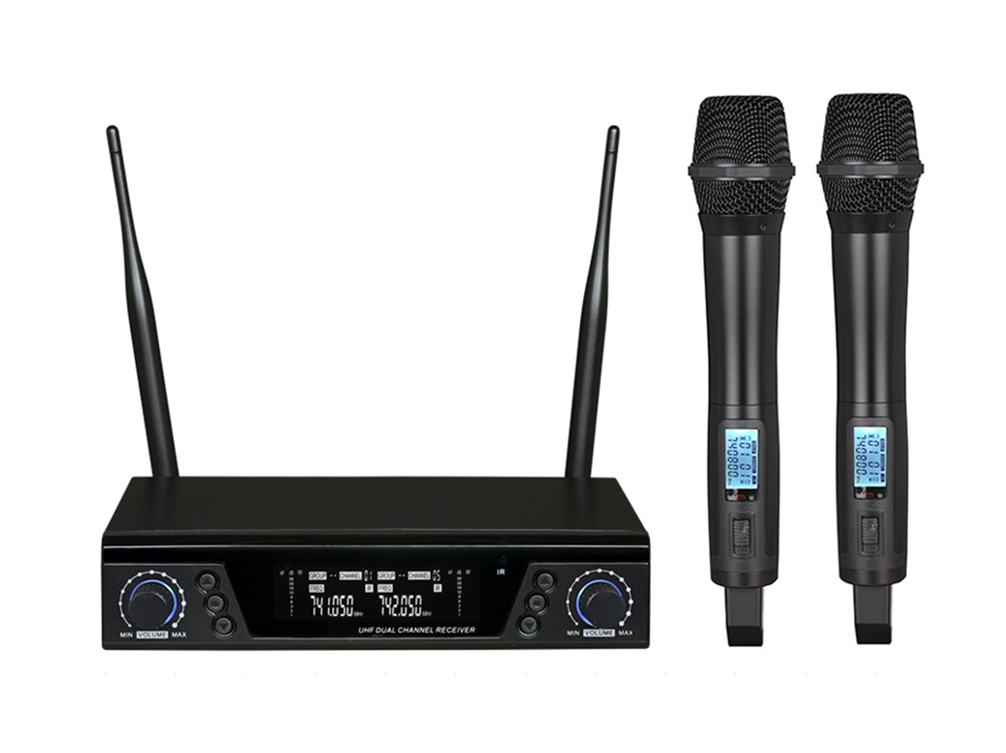

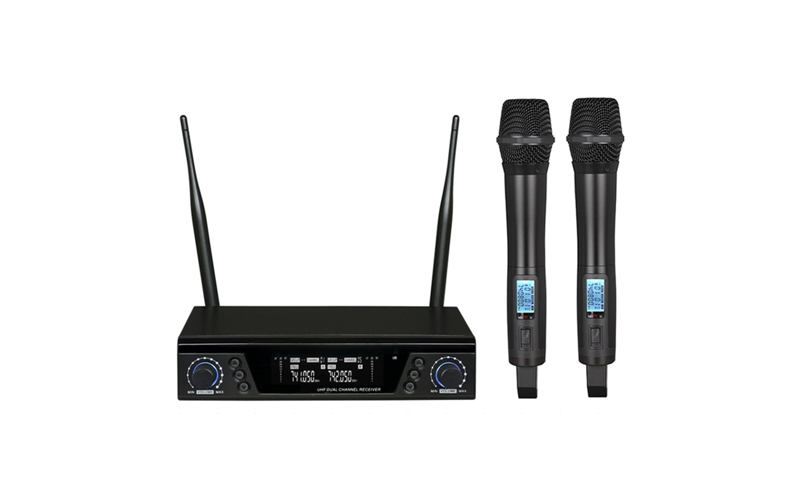

• Dual channel digital UHF wireless microphone system
• True diversity technology for highest reliable signal receiving
• Support 200 microphone simultaneously working together
• UHF 600-928MHz frequency range
• PLL Synthesized circuit
• Pre-set 200(100*2) selectable frequencies.
• Digital Pliot tone-key control, high anti-interference capability
• IR sync downloading the frequency from receiver
• Optional function of Auto-scan the available clear frequency
• LCD status of frequency, AF and RF signal etc
• EIA standard 1U rack-mountable metal chassis
• Up to 300 to 500 meters line-of-sight range
• Battery working time up to 16 hours
• Ideal for professional stage, clubs and music entertainment etc
• Optional hand-held, bodypack, lavalier and headset transmitter available

SPECIFICATION

• Comprehensive Performance
• Carrier Frequency: UHF600-928MHz
• Frequency Stabilization: <±30ppm
• Dynamic Range: >95dB
• Total Harmonic Distortion：<0.5%
• Frequency Response: 40Hz-15KHz±3dB
• Audio Output Level: Unbalance 400mV

Receiver

• Power Supply: DC12-18V
• Consume Power: 1 WATT
• Signal/Noise Ratio: >105dB
• Image &Spurious Rejection: >80dB
• Border upon Channel Rejection: >80dB
• Receiving Sensitivity: 5dBuV
• De-Emphasis: 50uS

Transmitter

• Transmitter Power: 10~30mW
• Modulation Type: FM,
• Deviation: 30KHz
• Spurious Emission: >60dB
• Battery Voltage: 3V (2x1.5V AA Battery)
• Continuous Using: 16 hours
