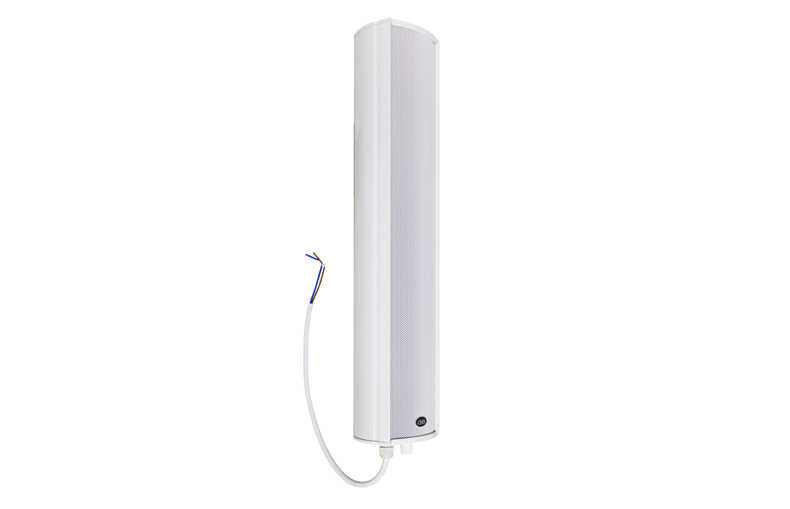

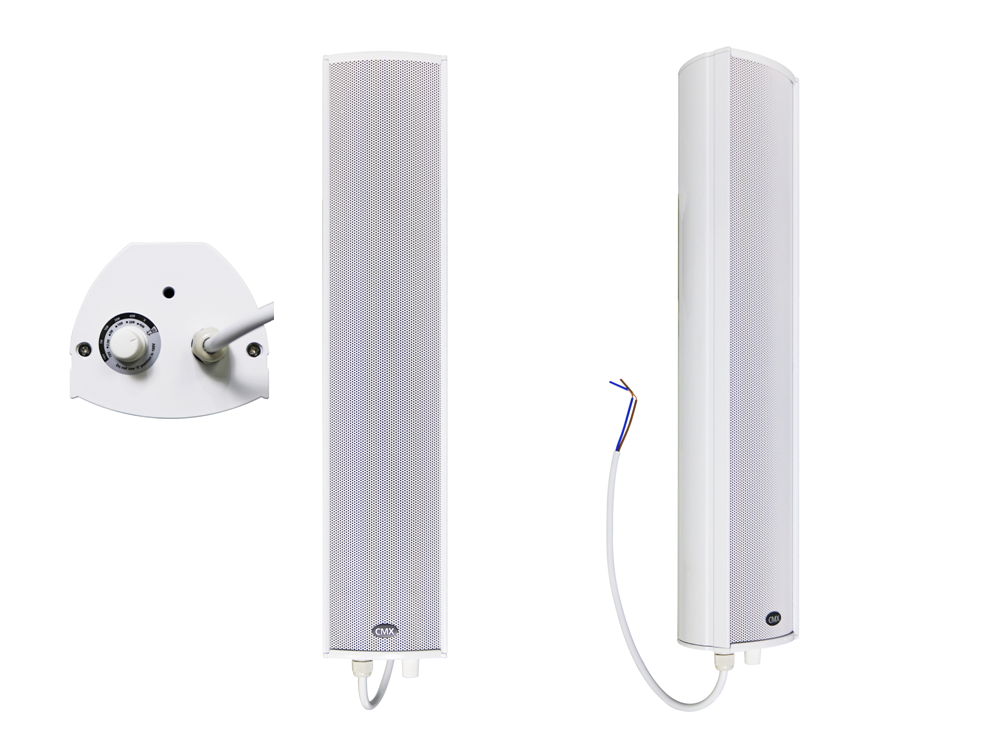

Outdoor Column Speaker CLSK-10C CLSK-20C CLSK-30C CLSK-40C

CMX AUDIO outdoor column speaker, IP66 waterproof rating, 10W-20W-30W-40W version, with 100V & 8 Ohm power taps, 3"+1" two way slim design, both of which are designed for background music system and paging system both applications.
Chi tiết sản phẩm

Description:

CLSK-40C series outdoor column speaker is built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers, thus the CMX AUDIO PA technology outdoor column speaker support more than 600 pieces per installation sound system and the transformer technology helps the amplifier to loudspeakers distance up to more than 10kms. The CLSK-40C series column speaker built-in one or multiple units of 3” waterproof PP woofer with 1” tweeter to create two way speaker system, so as to generate wide frequency response 150-18kHz. The multiple power taps support 100V & 8 Ohms both applications which could meet different outdoor area sound applications and ambient noise surroundings. The bottom location of the knob and full sealed aluminum body and full sealed cable tail with waterproof gland all are helps to ensure its waterproof rating is IP66 level.

The aluminum enclosure withstands of harshest abuse, heavy damage proof no color fade for many years outdoor like street lamp pole and balcony use. Easy and secure wall mount installation in outdoor area by the supplied wall mount bracket, where the dispersion angle could be adjusted according to the applications. It is ideal choice for park, playground, swimming pool and garden etc outdoor applications where background music and paging is needed.



Feature:

  • Commercial public address (PA) system outdoor column speaker with transformer
  • Ideal for outdoor music and speech use on street lamp pole and balcony use
  • 3” waterproof PP woofer with 1” tweeter two way speaker system
  • Waterproof rating level of IP66 for fully outdoor use
  • Cable tail with waterproof gland & power taps knob waterproof cushion
  • Aluminum alloy enclosure and stainless metal bracket in white
  • Quick installation by supplied U-shaped stainless mounting bracket
  • 360 degree rotatable bracket RTB36 as option to purchase



Specifications:

Model

CLSK-10CA

CLSK-20CA

CLSK-30CA

CLSK-40CA

Description

Outdoor Column Speaker

Power Taps

1.25/2.5/5/10W & 8Ω

2.5/5/10/20W & 8Ω

3.8/7.5/15/30W & 8Ω

5/10/20/40W & 8Ω

Line Input

70V/100V

70V/100V

70V/100V

70V/100V

Speaker

3”x1+1” Tweeter

3”x2+1” Tweeter

3”x3+1” Tweeter

3”x4+1” Tweeter

Freq Resp

150-18KHz

150-18KHz

150-18KHz

150-18KHz

SPL(1W/1m)

88dB

89dB

90dB

92dB

IP Rating

IP66

IP66

IP66

IP66

Finish

Aluminum enclosure and stainless metal bracket

Dimension

97 ×86×236mm

97(×86×316mm

97 ×86×396mm

97×86×476mm
