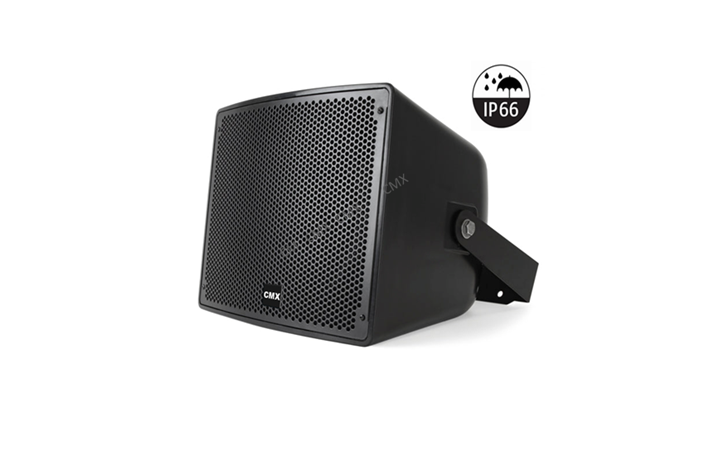

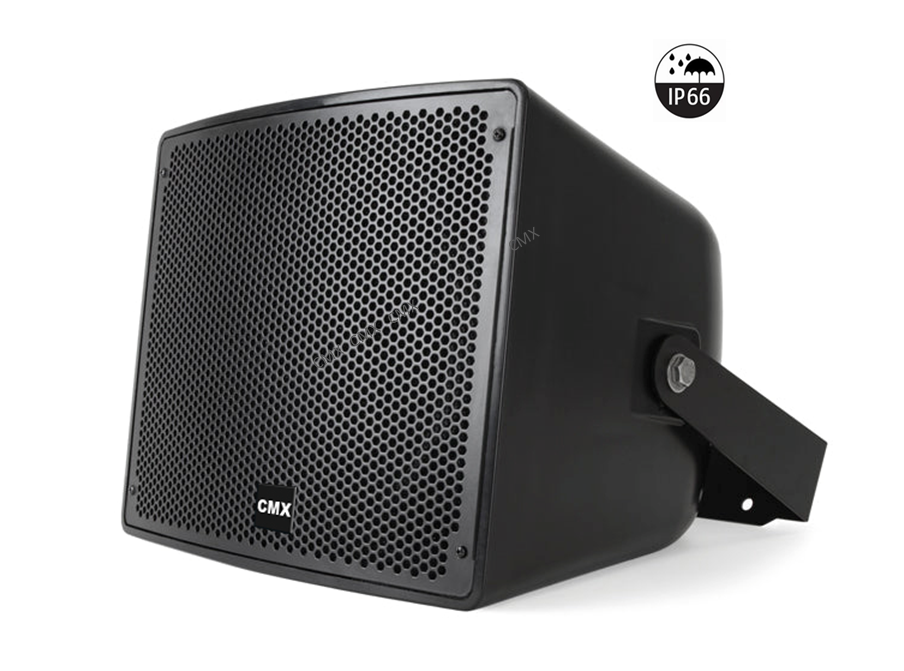

HSK-108AT 8 Inch 2-Way Coaxial All Weather Loudspeaker

HSK-108AT Two Way Coaxial All weather Loudspeaker is designed for outdoor sound reinforcement system and public address system, 10 inch woofer with tweeter, it is designed for outdoor applications of IP66 waterproof rate, 150W RMS power output and support 100V/70V and 8 Ohms.
Chi tiết sản phẩm

8” 2-Way Coaxial All Weather Loudspeaker
HSK-108AT





Description:

The HSK-108AT 8" all-weather outdoor loudspeaker offers superior voice and music reproduction with a 110° x 110° coverage angle from a durable UV protected ABS construction. Outdoor level of IP66 rated for long-lasting reliability in harsh environmental conditions, this 100V/70V transformer built-in all weather outdoor loudspeaker incorporates a coaxial high-power 8" woofer and 1.5" tweeter that delivers full range frequency response up to 75-18KHz to meet all indoor and outdoor music applications. The all weather loudspeaker is perfect for background and foreground music, paging, and public address & voice evacuation in sports hall, football field, playground, park and outdoor live performance applications.





Feature:

Commercial full weatherproof horn speaker with 100V/70V transformer

Application of outdoor sound applications of sports hall, football field, playground, park

Superior sound quality of very clear voice restoration

Two way 8” woofer with 1.5” tweeter

RMS 150 Watt 70V/100V transformer with 8Ω power tapping

Power tappings of 150W, 75W, 37.5W, 18.3W & 8Ω bypass

Waterproof outdoor use level of IP66

Outdoor weather safe connection with a recessed terminal block and waterproof seal cover

Fiber-reinforced plastic enclosure with aluminum grill in black

U-Shaped wall mounting stainless bracket is supplied

Multiple combination of outdoor line array loudspeakers





Specification:

Model

HSK-108AT

Description

8” 2-Way Coaxial All Weather Loudspeaker

Power Output

150W RMS and 300W Max.

Impedance

8 Ohms

Power Tapping

150W, 75W, 37.5W, 18.3W & 8Ω bypass

Frequency Response

75-18K Hz

SPL (@1W/m)

101dB and Max 115dB

Speaker Unit

Waterproof 8”woofer +1.5” tweeter

IP Rate

IP66

Dispersion Angle

Horizontal: 110°, Vertical: 110°

Operation Temp

-22 to +55

Dimension

302x312x260 mm

Material

Fiber-reinforced plastic enclosure with aluminum grill in black, stainless bracket

Weight

9.1kg
