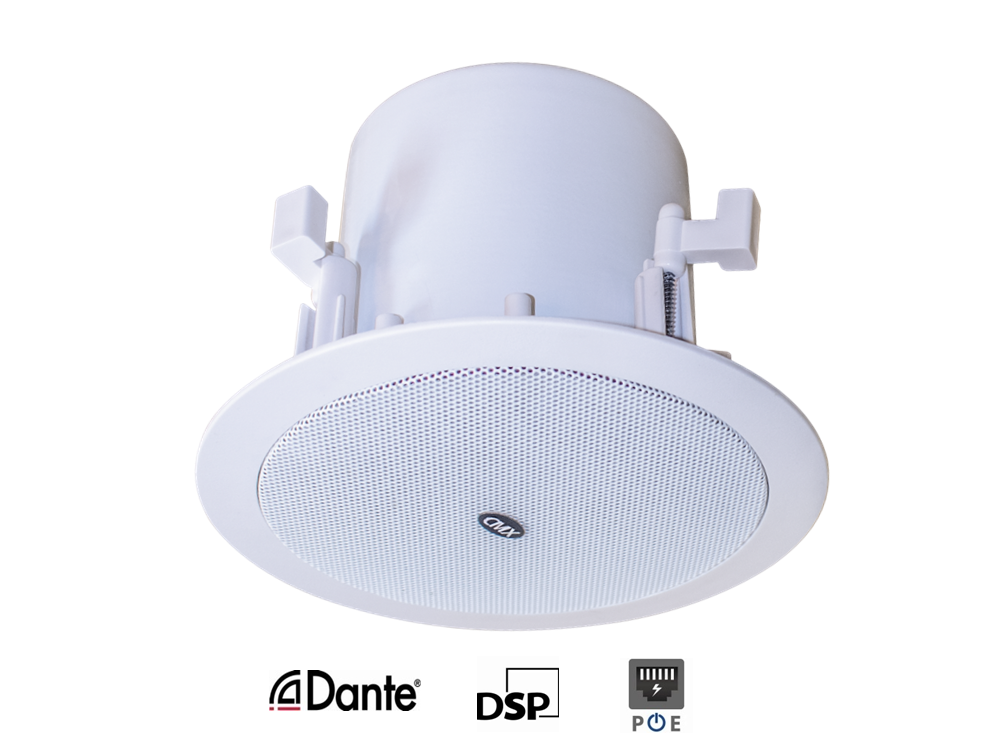

DANTE-630K Dante Enabled Ceiling Speaker With DSP

DANTE-630K is Dante enabled active ceiling speaker, 30W rms, 2-way, PoE, built-in with DSP, support all dante device audio streaming, easy to set up Dante IP audio system for conference room and auditorium for high quality long distance sound system.
Chi tiết sản phẩm

Feature:

  • Active ceiling speaker with integrated Dante® & DSP
  • Power supply via PoE (Power over Ethernet)
  • IP based POE powered 30W ceiling speaker
  • 2-way wall mount speaker 30W RMS
  • Built-in high efficiency Class-D 30W amplifier
  • 6.5” woofer with 1.5” tweeter 2-way speaker system
  • Single network cable for control, signal and power supply
  • Configuration and zoning of the speaker are accomplished via software
  • Support BGM, live speech, pre-recorded announcement over IP
  • Different programs simultaneously to different POE speakers
  • Paging prioritization and background music system
  • Remotely adjustable speaker volume



Description:

DANTE-630K is an Dante audio network addressable and self-amplified ceiling speaker system. The speaker is powered by PoE+ network switch meaning no external power supply is required. This Dante® speaker is particularly suitable for long distance audio streaming applications of higher sound quality requirements. It can be used for applications where several audio channels have to be transmitted over great distances and to different areas or locations. The fields of application include schools, office buildings, fitness centre, shops and restaurants. Compared to analogue transmission, digital transmission provides several benefits. The quality of the cable is not required to be as high as with analogue transmissions and even with greater distances, the signal features a comparably low susceptibility to interference. Compared with other Audio over Ethernet applications, e.g. CobraNet or EtherSound, Dante® can support gigabit applications with several channels, features a lower latency and automatic configuration. The power for DANTE-63K is supplied via PoE (Power over Ethernet), which means Power, audio and control are delivered to the speaker via a CAT6 cable.



Specification:

Model

DANTE-630K

Description

Dante Enabled Ceiling Speaker With DSP

Power Output

30W Watts RMS

IP Audio Streaming

Dante

Speaker System

2-way 6.5” woofer+1.5” tweeter

Frequency Response

60-20KHz

Sensitivity

92dB/1W/1M

S/N Ratio

≧85dB

THD

≦0.1%

Dispersion

Horizontal: 100°; Vertical: 100°

Operation Temp

-20℃ to +55℃

Humidity

<90%

Power Supply

PoE via RJ45

Dimension

Ø230×150mm

Cutout Size

195mm

Material

ABS enclosure, metal grille and metal back box in white

Weight

2.4kg
