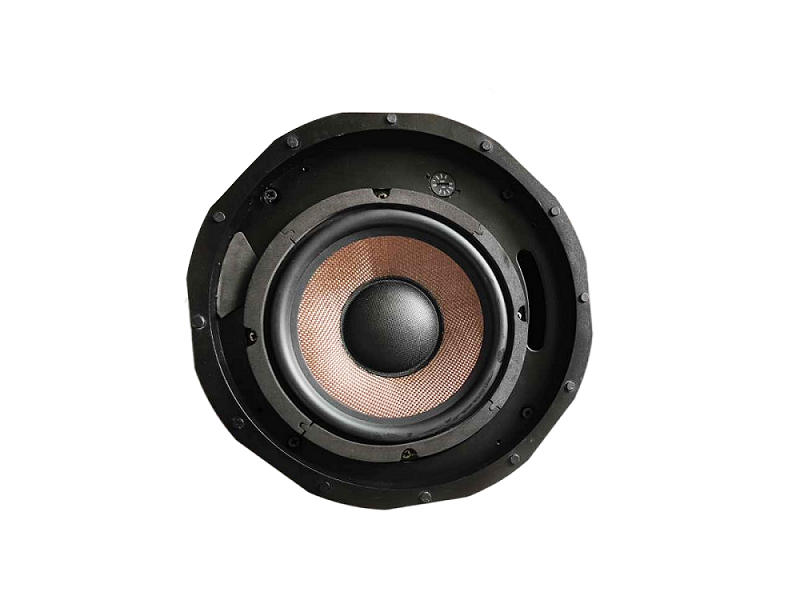

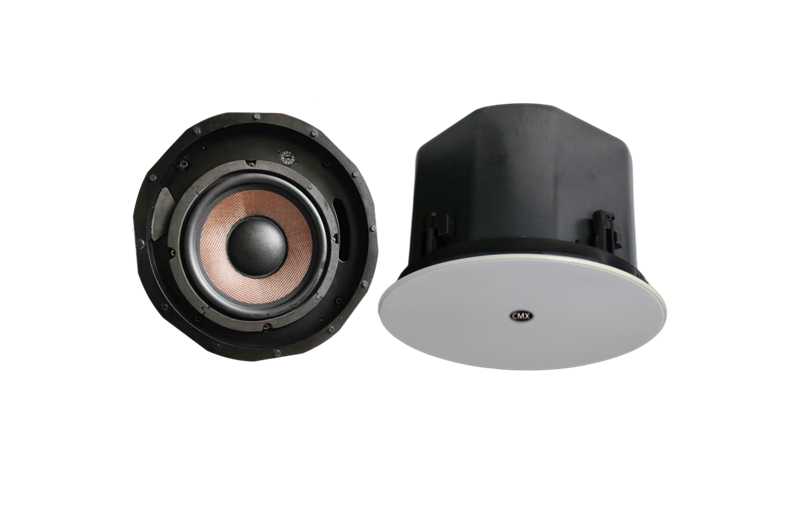

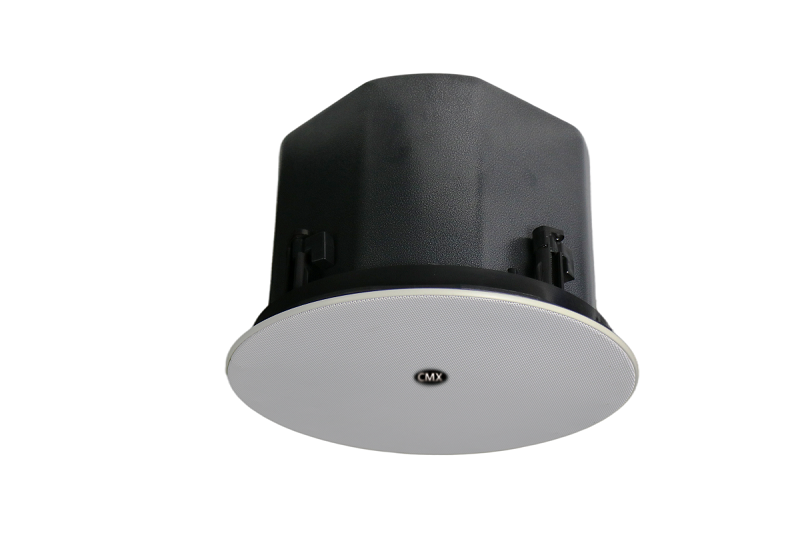

Ceiling Subwoofer SUB-860D 100V & 8 Ohm
8" Ceiling Subwoofer
SUB-860D
Feature:
Ceiling subwoofer for extra low frequency & heavy bass
With transformer support 70v/100v or 8 Ohm
60W RMS and Max 120W power output
60W-30W-15W-7.5W& 8 Ohm power taps on front
8" glass fiber low frequency transducer
With breathing whole for strengthened performance
ABS enclosure and metal fire dome
In-ceiling quick installation by dog ears
Extra bass supplement for in-ceiling sound system
Description:
The ceiling subwoofer is especially designed for extra low frequency or heavy bass applications, built-in low loss matching transformer allows for either 70v/100v or 8 Ohm operation. Its rated power of60W of RMS power and Max output of 120W. The multiple tapings of 60W-30W-15W-7.5W & 8 Ohm for different room size applications. Low frequency down to 40Hz, which is truly designed for super heavy bass applications.
Specification:
|
Model |
SUB-860D |
|
Description |
8” Ceiling Subwoofer |
|
Power Taps |
60W-30W-15W-7.5W & 8 Ohm |
|
Frequency Response |
40-108Hz |
|
SPL(@1W/m) |
89±3dB |
|
Speaker Unit |
8” glass fiber low frequency transducer |
|
Cutout Size |
Ø270mm |
|
Dimension |
Ø305×215mm |
|
Material |
ABS enclosure and metal fire dome |
|
Weight |
4.8kg |
