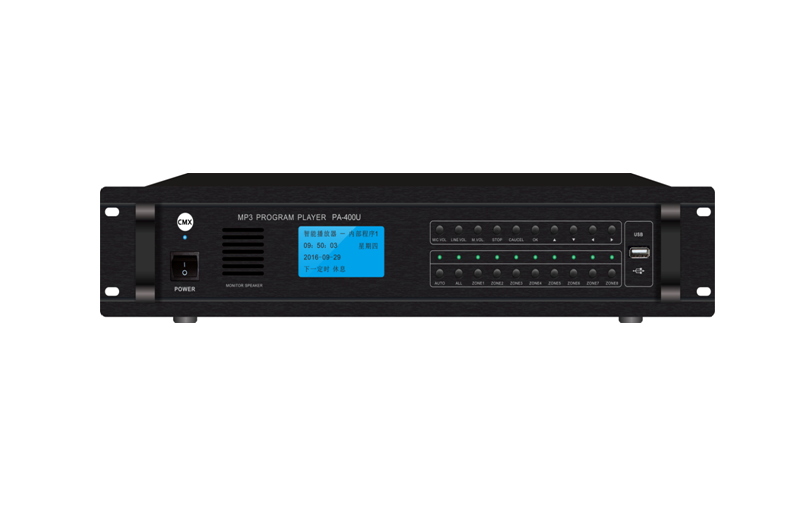

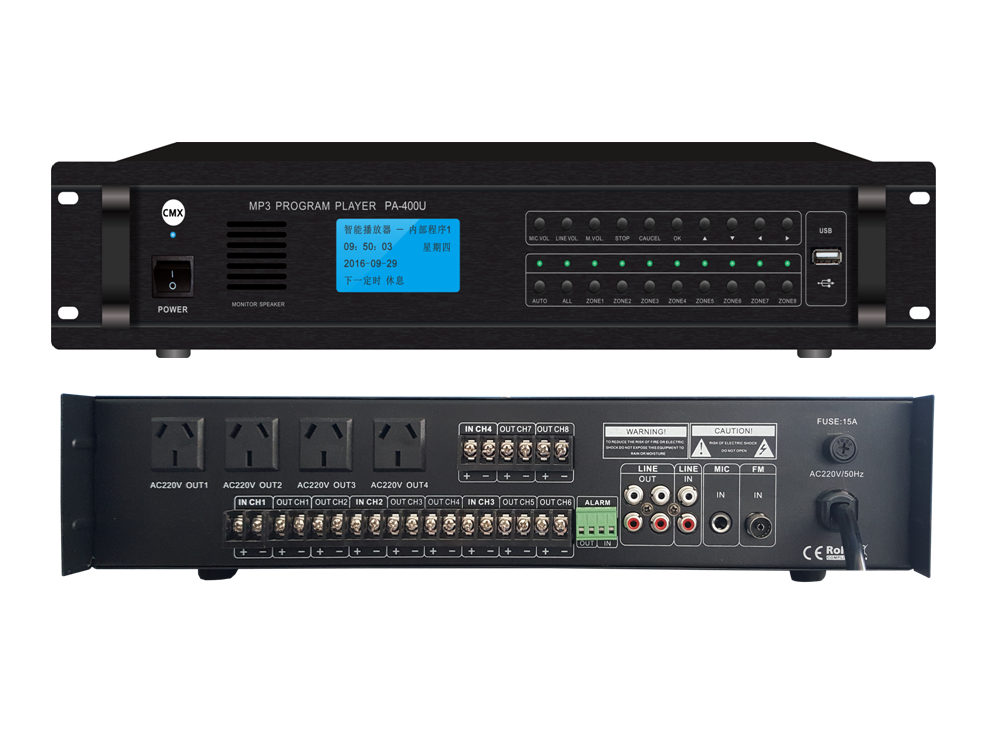

8 Zone Weekly Timer with Mp3 & FM PA-400U
PA-400U is public address controller with 8 zone output, weekly timer, paging controller & USB/FM, which is ideal for cost effective background music system with paging and voice alarm functions. One Mic input, one line input and one emergency input with priority to override other inputs. PA-400U is one compact 8 zone weekly timer with USB/FM for school, factory and shopping mall where scheduled announcement is needed.
Features:
- Public address system intelligent controller.
- Ideal PA sound system controller for school, shopping mall, hotel, and intelligent office etc.
- All in one intelligent PA system controller built in weekly timer, 8 zone speaker selector, Mp3 player & FM, fire alarm and voice evacuation system interface, monitor and programmable power sequencer.
- One amplifier or 4 amp inputs divided into 8 zones speaker output.
- Built-in 5W hi-fi monitor speaker with volume control.
- With one microphone input, one line input, one USB input and one EMC input and two line outputs
- Auto timely broadcast up to 99 program sources.
- Broadcast modes: random, repeat and circle.
- 4 regular programs and 1 spare program for emergency/particular circumstance.
- Functional swift key for internal MP3 player priority manual broadcast.
- Flash memory capacity support 4GB and 8GB.
- Audio source format support Mp3/MAV and WMA
- The system communication distance up to 1kms
- Memory function even in case of power off.
Specification:
Model |
PA-400U |
Description |
8 Zone Weekly Timer with Mp3 & FM |
Amplifier Input |
1 or 4 Amplifier inputs |
Zone Output |
8 zone speaker outputs, 100V or 70V |
Mic1. Input |
5~8mV , 600ohms(Ω),unbalanced |
Line1 Input |
300mV , 10k ohms(Ω),unbalanced |
Line1-2 Output |
500mV 10k ohms(Ω),unbalanced |
Memory Capacity |
4GB |
Program AC Power Outputs |
4 outputs |
Monitor Speaker |
Full range speaker 5w, 8ohms, hi-fi |
S/N Ratio |
>90dB |
Frequency Response |
20Hz~ 18KHz |
Power Supply |
AC220V or 115V, 50-60Hz |
Power Consumption |
15~20W |
Dimension |
88×484×350mm |
Net Weight |
6.42kg |
