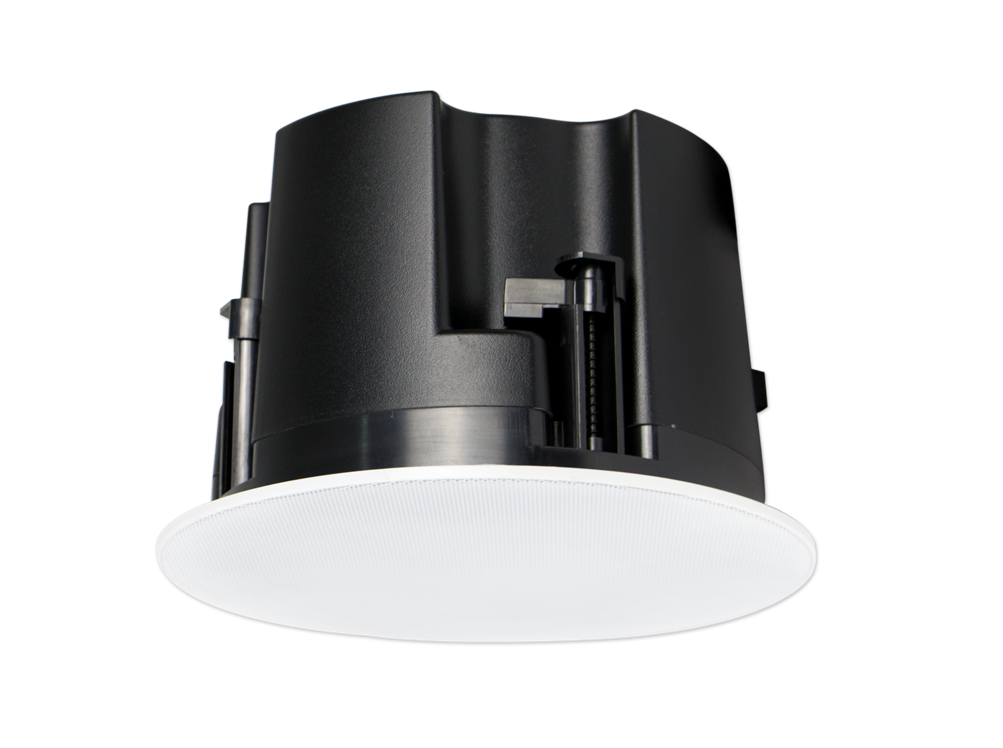

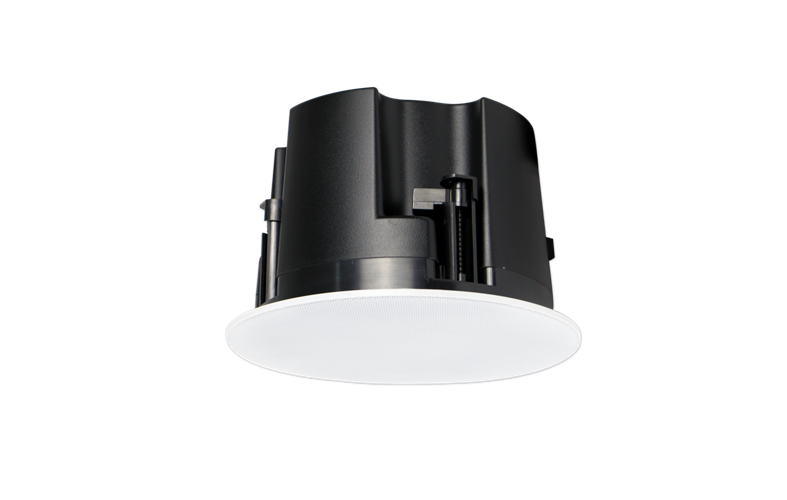

8" Two Way Ceiling Speaker with Back Cover 100V & 8 Ohm CSK-814HTM
CSK-814HTM is a two way ceiling speaker designed for background music system and professional audio solutions, 8" 2-Way Ceiling loudspeaker with Back Cover 100V & 8 Ohm.
Features:
- High grade slim line 2-way ceiling speaker
- 100V line ceiling speaker with transformer & back can
- hi-flex polypropylene cone main driver for extended low frequency response
- 8” bass speaker with 1” tweeter
- Power taps of 40W-20W-10W-5W & 8 Ohm
- Magnetic frameless grille& ABS baffle& ABS back can
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
- Options: CSK-814HT (100V); CSK-814HR ( 8 Ohm, with crossover)
Specifications:
|
Model |
CSK-814HTM |
|
Description |
8” 2-Way Ceiling Speaker |
|
Power Output |
40W/80W Max 8 Ohms |
|
Power Taps |
40W-20W-10W-5W & 8 Ohm |
|
Sensitivity 1W/1m |
91dB |
|
MAX SPL |
105dB |
|
Frequency Response |
60-20KHz |
|
Finish |
Baffle: ABS, black; Grille: magnetic steel, white |
|
Speaker Driver |
8" bass+1" tweeter two way system |
|
Cutout Size |
Ø250mm |
|
Dimensions |
Ø280×190mm |
|
Weight |
2.7Kg |
