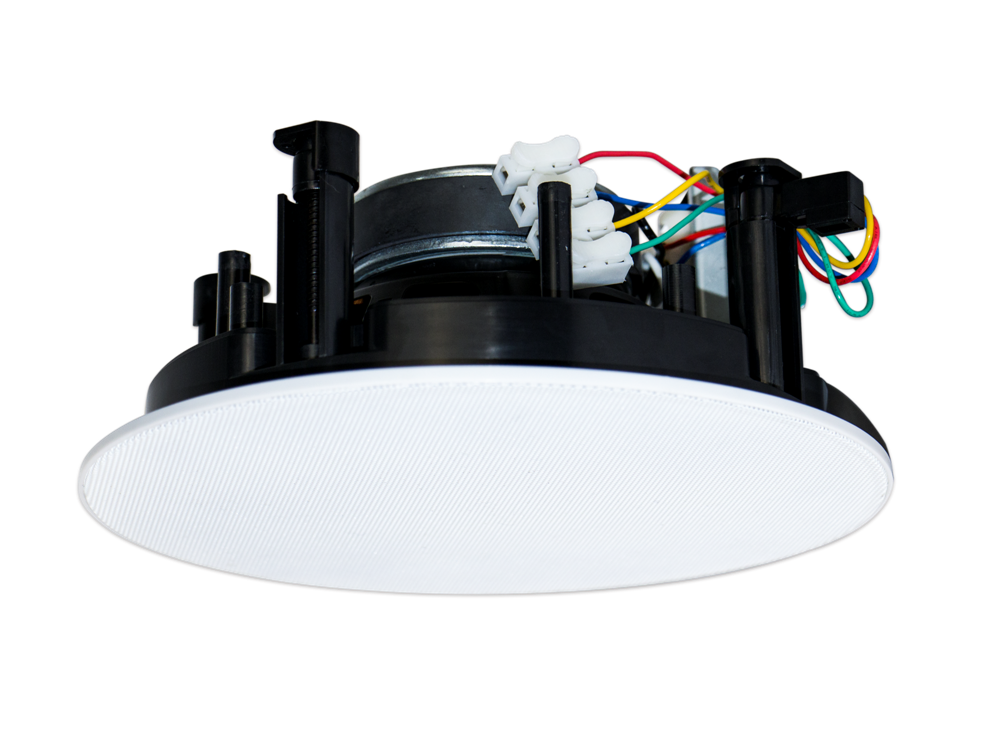

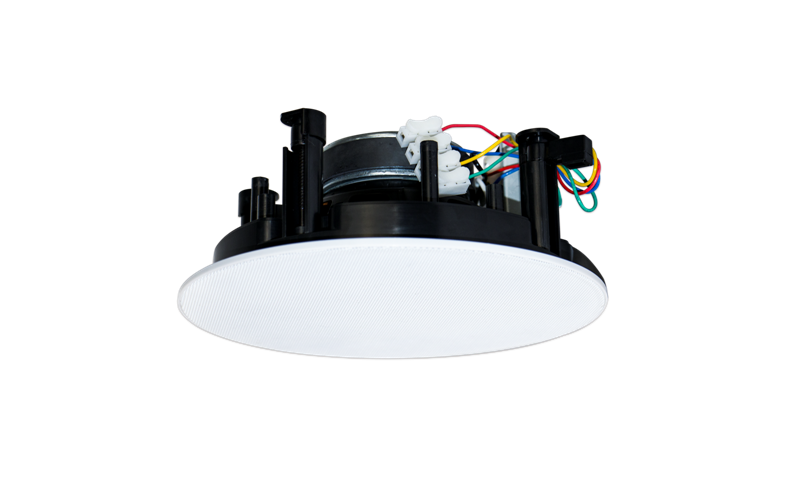

8" Two Way Ceiling Loudspeaker 100V 40W CSK-814HT
CSK-814HT is a ceiling loudspeaker of 40W/20W/10W 100V 8" 2-way, commercial audio & public address use, with 100V transformer, coaxial speaker.
Features:
- High grade slim line 2-way ceiling speaker
- 100V line ceiling speaker with transformer
- hi-flex polypropylene cone main driver for extended low frequency response
- 8” bass speaker with 1” tweeter
- Power taps of 40W-20W-10W
- Magnetic frameless grille& ABS baffle
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
- Options: CSK-814HTM (100V & 8 Ohm, with ABS back can); CSK-814HR ( 8 Ohm, with crossover)
Specifications:
|
Model |
CSK-814HT |
|
Description |
8” 2-Way Ceiling Speaker |
|
Power RMS |
40W |
|
Power Taps 100V |
40W-20W-10W |
|
Sensitivity 1W/1m |
91dB |
|
MAX SPL |
105dB |
|
Frequency Response |
80-20KHz |
|
Finish |
Baffle: ABS, black; Grille: magnetic steel, white |
|
Speaker Driver |
8" bass +1" tweeter two way system |
|
Cutout Size |
Ø250mm |
|
Dimensions |
Ø280×115mm |
|
Weight |
2.1Kg |
