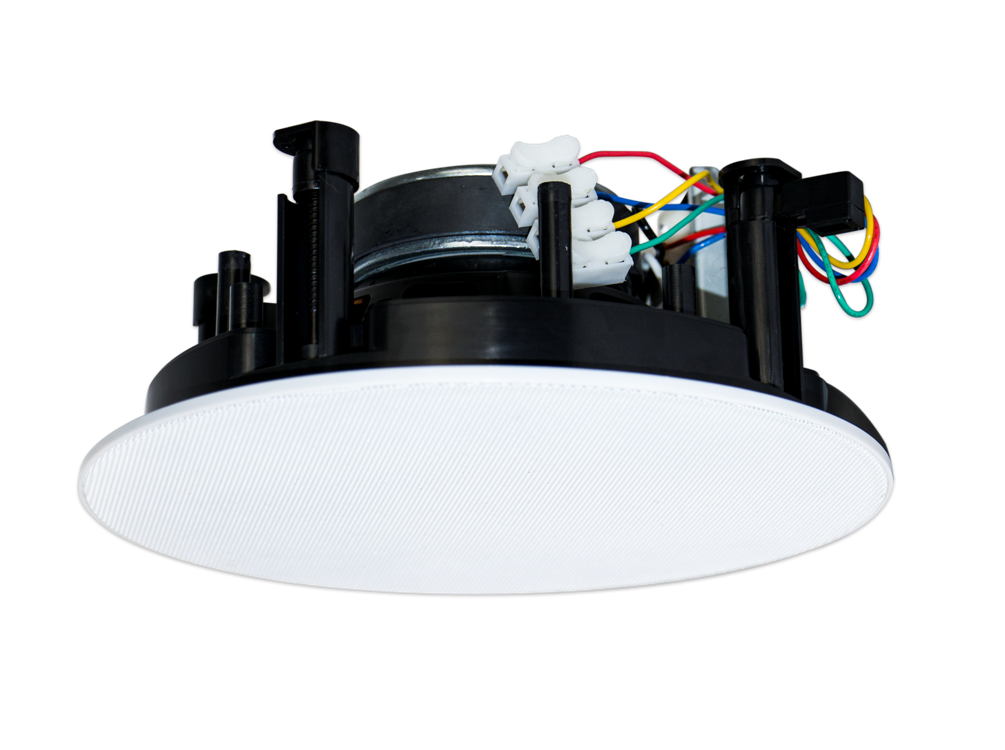

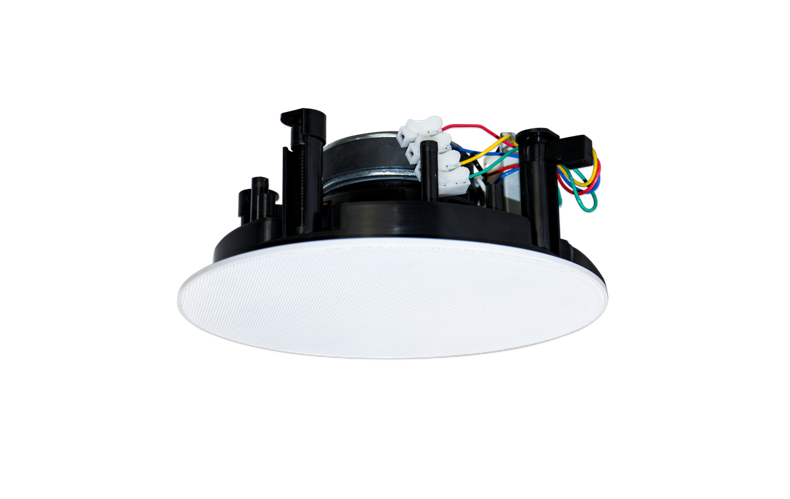

6.5" 2-Way Frameless Ceiling Speaker 30W 100V CSK-613HT
CSK-613HT is professional frameless ceiling speaker of 30W/15W/7.5W 100V 6.5 inch 2-way, commercial audio & public address use, with 100V transformer, coaxial speaker.
Features:
- High grade slim line 2-way ceiling speaker
- 100V line ceiling speaker with transformer
- hi-flex polypropylene cone main driver for extended low frequency response
- 6.5” bass speaker with 1” tweeter
- Power taps of 30W-15W-7.5W
- Magnetic frameless grille& ABS baffle
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
- Options: CSK-613HTM (100V & 8 Ohm, with ABS back can); CSK-613HR ( 8 Ohm, with crossover)
Specifications:
|
Model |
CSK-613HT |
|
Description |
6.5” 2-Way Ceiling Speaker |
|
Power RMS 100V |
30W |
|
Power Taps 100V |
30W-15W-7.5W |
|
Sensitivity 1W/1m |
90dB |
|
MAX SPL |
103dB |
|
Frequency Response |
80-20KHz |
|
Finish |
Baffle: ABS, black; Grille: magnetic steel, white |
|
Speaker Driver |
6.5" bass +1" tweeter two way system |
|
Cutout Size |
Ø205mm |
|
Dimensions |
Ø235×110mm |
|
Weight |
1.7Kg |
