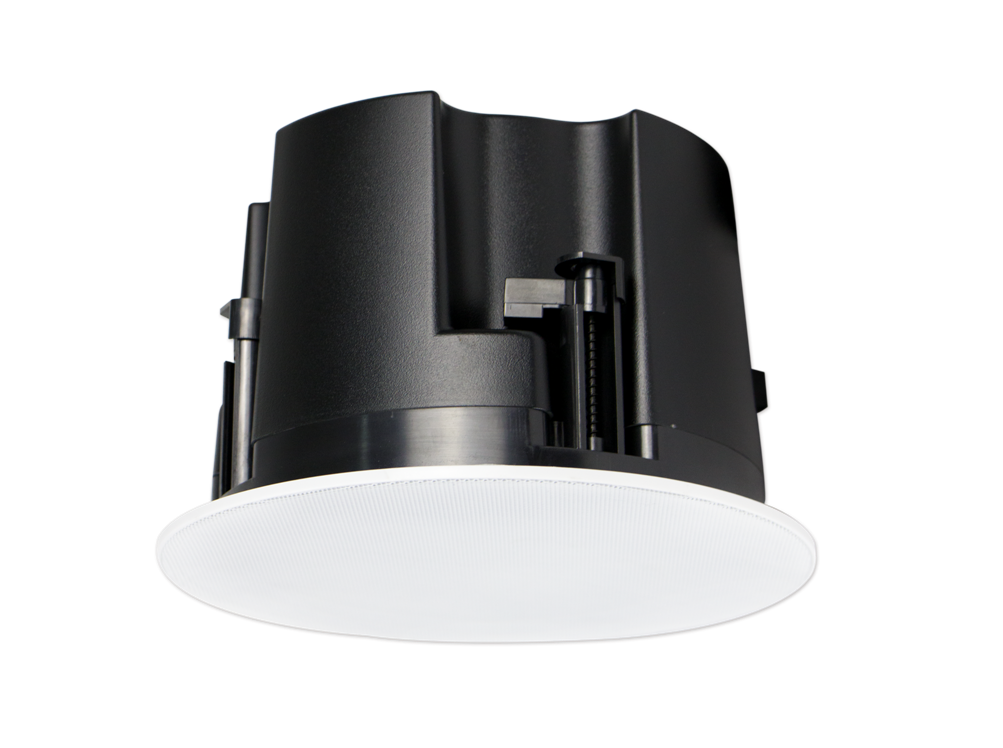

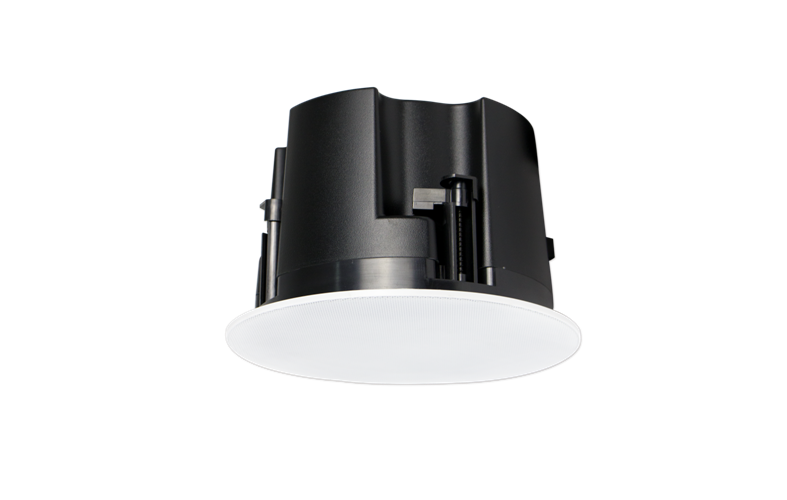

6.5" 2-Way Ceiling Speaker with Back Cover 100V & 8 Ohm CSK-613HTM
CSK-613HTM is a frameless ceiling loudspeaker designed for background music system and professional audio solutions, 6.5" 2-Way Ceiling Speaker with Back Cover 100V & 8 Ohm.
Features:
- High grade slim line 2-way ceiling speaker
- 100V line ceiling speaker with transformer & back can
- hi-flex polypropylene cone main driver for extended low frequency response
- 6.5” bass speaker with 1” tweeter
- Power taps of 30W-15W-7.5W-3.8W & 8 Ohm
- Magnetic frameless grille& ABS baffle& ABS back can
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
- Options: CSK-613HT (100V); CSK-613HR ( 8 Ohm, with crossover)
Specifications:
|
Model |
CSK-613HTM |
|
Description |
6.5” 2-Way Ceiling Speaker |
|
Power Output |
30W/60W Max 8 Ohms |
|
Power Taps |
30W-15W-7.5W-3.8W & 8 Ohm |
|
Sensitivity 1W/1m |
90dB |
|
MAX SPL |
103dB |
|
Frequency Response |
60-20KHz |
|
Finish |
Baffle: ABS, black; Grille: magnetic steel, white |
|
Speaker Driver |
6.5" bass +1" tweeter two way system |
|
Cutout Size |
Ø205mm |
|
Dimensions |
Ø235×145mm |
|
Weight |
2Kg |
