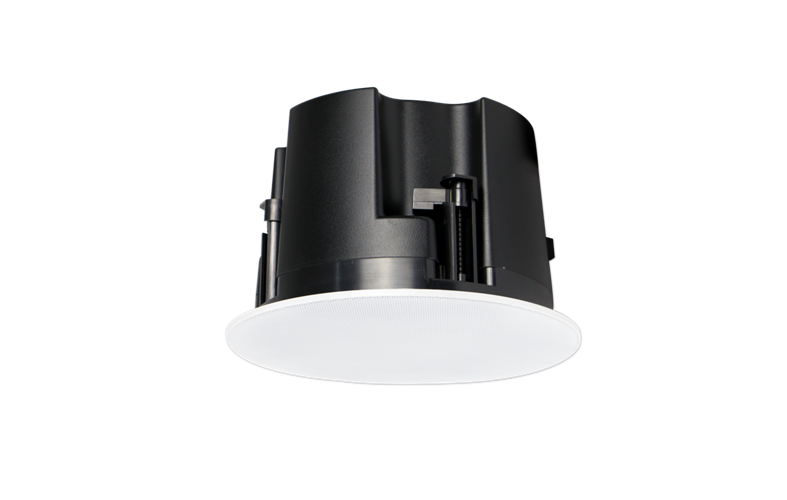

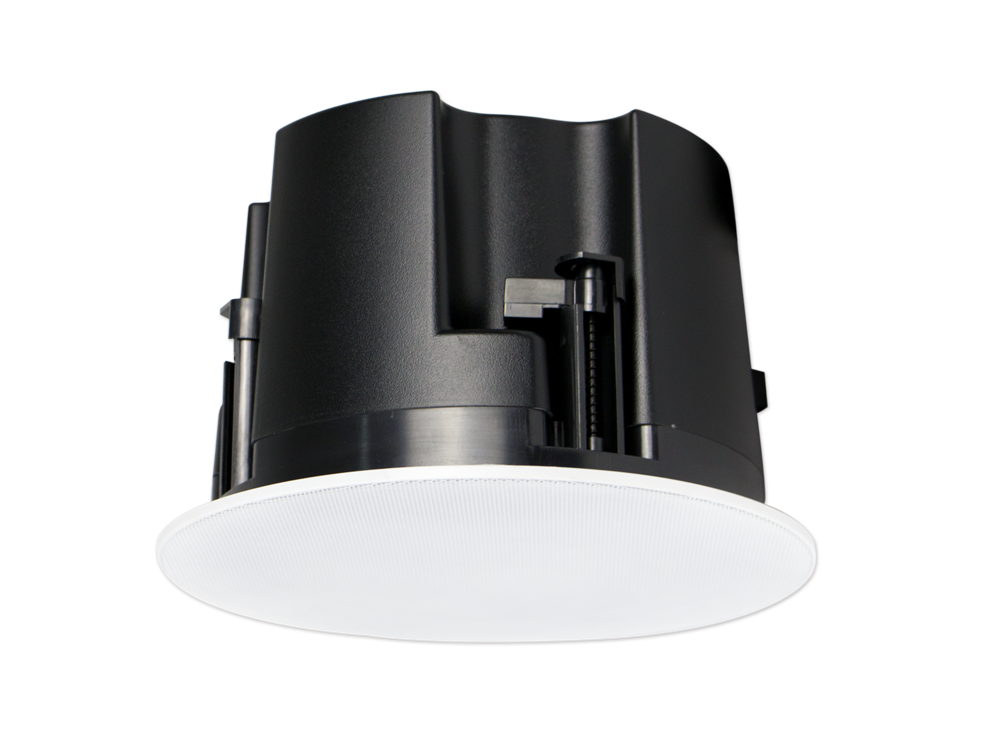

5.25" 2-Way Ceiling Speaker with Back Cover 100V & 8 Ohm CSK-512HTM
CSK-512HTM is ceiling loudspeaker designed for background music system and professional audio solutions, 5.25" 2-Way Ceiling Speaker with Back Cover 100V & 8 Ohm.
Features:
- High grade slim line 2-way ceiling speaker
- 100V line ceiling speaker with transformer & back can
- hi-flex polypropylene cone main driver for extended low frequency response
- 5.25” bass speaker with 1” tweeter
- Power taps of 20W-10W-5W-2.5W & 8 Ohm
- Magnetic frameless grille& ABS baffle& ABS back can
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
- Options: CSK-512HT (100V); CSK-512HR ( 8 Ohm, with crossover)
Specifications:
|
Model |
CSK-512HTM |
|
Description |
5.25” 2-Way Ceiling Speaker |
|
Power Output |
20W/40W Max 8 Ohms |
|
Power Taps |
20W-10W-5W-2.5W & 8 Ohm |
|
Sensitivity 1W/1m |
89dB |
|
MAX SPL |
101dB |
|
Frequency Response |
60-20KHz |
|
Finish |
Baffle: ABS, black; Grille: magnetic steel, white |
|
Speaker Driver |
5.25" bass +1" tweeter two way system |
|
Cutout Size |
Ø 180mm |
|
Dimensions |
Ø205×130mm |
|
Weight |
1.5Kg |
