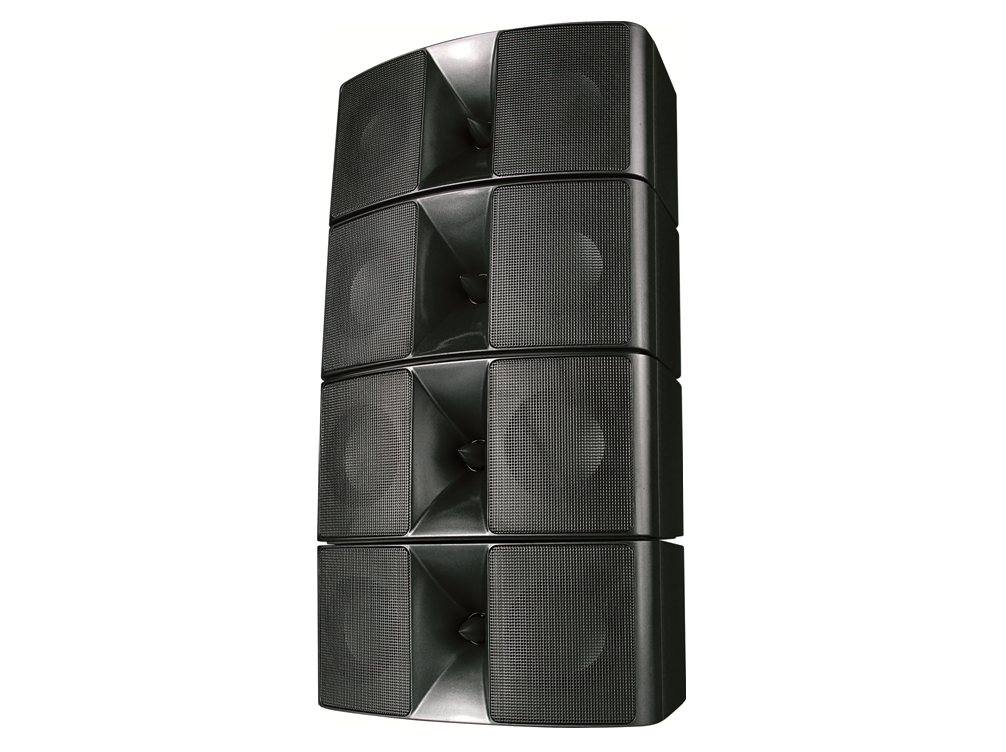

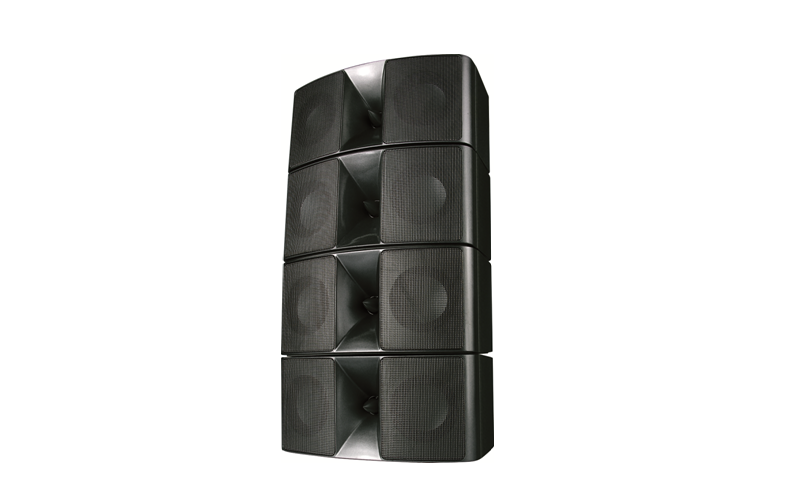

3" Compact Line Array Speaker System AS3120
AS3120 is 2-way wall mount speaker with 100V transformer, 120W/480W, ideal for public address & sound reinforcement system.
Features:
- Ideal for stadium and conventional center sound reinforcement system
- Indoor line array speaker system with 100V/70V transformer
- PA system line array speaker for background music and paging system
- 2-way speaker system 2×3” LF and 1.5” horn
- 120W rated power output and Max of 480W for each loudspeaker
- Flexible combination up to 4 units together
- Adjustable dispersion angle by different angle fixing up
- ABS material of years durable performance in black finish
- With 100V/70V matching transformer for Public Address use
- Hanging bracket and accessories had been included
Specifications:
|
Model |
AS3120 |
|
Description |
3” Compact Line Array Speaker System |
|
Power Output |
Continuous pink noise: 120W, Continuous program: 480W |
|
Line Input |
100V or 70V |
|
Sensitivity (1 W, 1 m) |
91dB |
|
Frequency Response |
80-18kHz (±3dB) |
|
Crossover Frequency |
2.5kHz |
|
Directivity Angle |
Horizontal: 90゜ (-6dB); Vertical: 10゜ (-6dB) |
|
Max SPL |
103dB continuous; 106dB peak |
|
Speaker |
2-way speaker system 2×3” LF and 1.5” horn |
|
Finish |
Enclosure: Polypropylene, black |
|
Punched net: Surface-treated steel plate, black |
|
|
Dimensions |
250(W) × 470 (H) × 163 (D) mm |
|
Weight |
11.7kg |
|
Mounting Bracket |
Adjustable direction hanging bracket and accessories are included |
