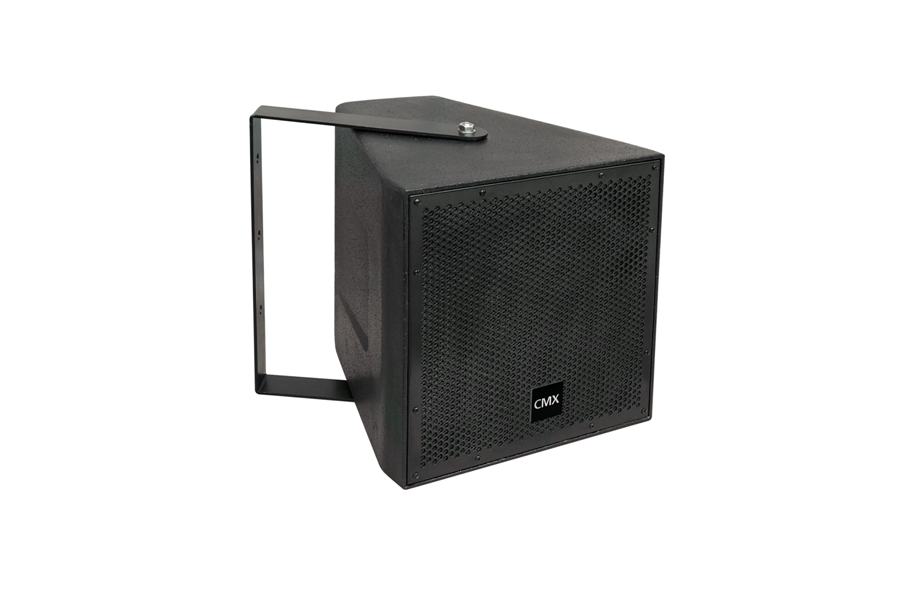

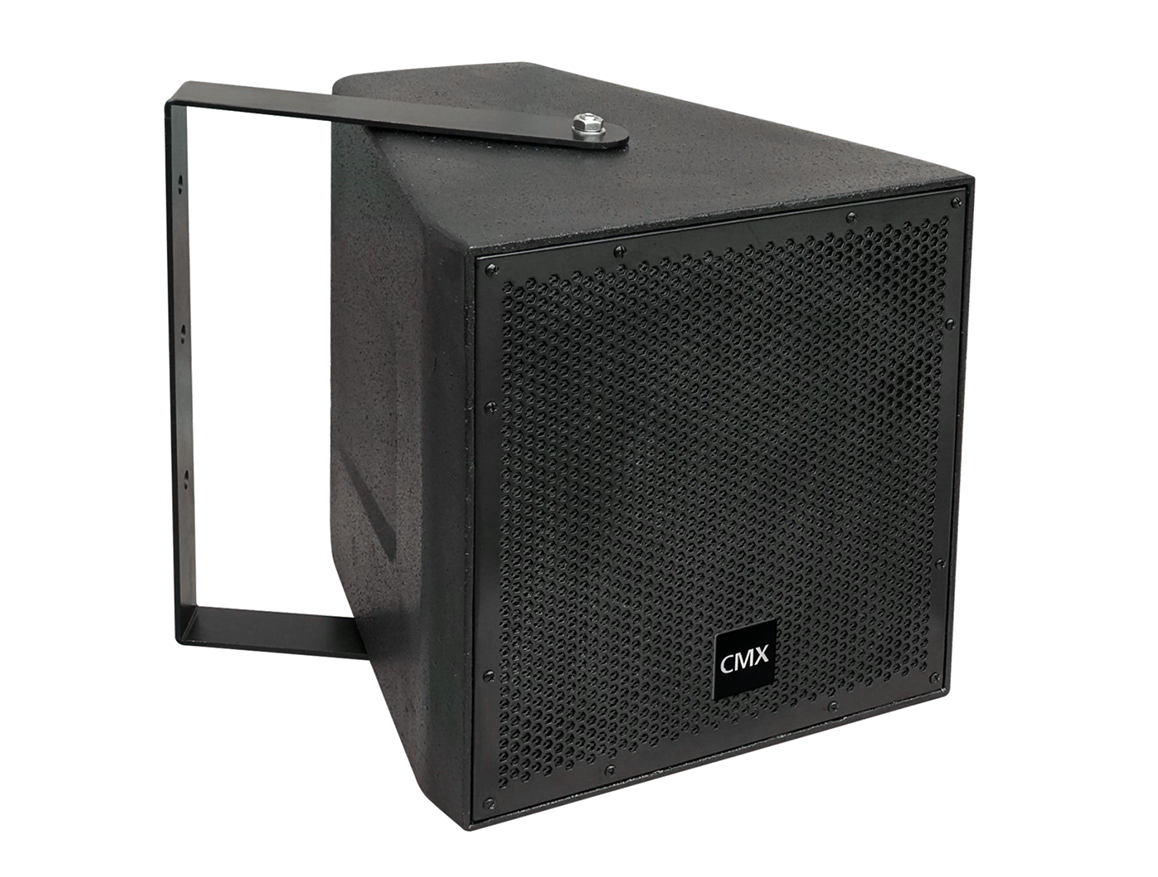

2-Way Coaxial Weatherproof Loudspeaker HSF-108T HSF-110T HSF-112T HSF-115T
Two Way Coaxial Weatherproof Loudspeaker is designed for outdoor sound reinforcement system and public address system, 8 inch, 10 inch, 12 inch, 15 inch outdoor loudspeakers of IP66 waterproof rate.
Feature:
- Commercial full weatherproof horn speaker with transformer
- Ideal for outdoor square and playground sound system
- Application of school, mosque, park, train station & airport
- Superior sound quality of very clear voice restoration
- Two way 8”/10”/12”/15” four size horn speaker with tweeter
- Rated power output of 150W/200W/300W at 100V
- Waterproof level of IP66
- Fiber-glass enclosure and stainless metal grille in black
- U-Shaped wall mounting stainless bracket is supplied
- Multiple combination of outdoor line array loudspeakers
Specification:
|
Model |
HSF-108T |
HSF-110T |
HSF-112T |
HSF-115T |
|
Description |
2-Way Coaxial Weatherproof Loudspeaker |
|||
|
Power Output |
150W |
200W |
300W |
300W |
|
Line Input |
100V or 70V |
|||
|
Frequency Response |
80-20K Hz |
80-20K Hz |
55-20K Hz |
100-20K Hz |
|
SPL (@1W/m) |
94dB/Max 118dB |
94dB/Max 118dB |
96dB/Max 120dB |
96dB/Max 125dB |
|
Speaker Unit |
8” |
10” |
12” |
15” |
|
IP Rate |
IP66 |
IP66 |
IP66 |
IP66 |
|
Dispersion Angle |
Ht: 120°, Vt: 120° |
Ht: 120°, Vt: 120° |
Ht: 90°, Vt: 90° |
Ht: 90°, Vt: 90° |
|
Operation Temp |
-22℃ to +55℃ |
|||
|
Dimension |
280×280×230mm |
350×350×340mm |
390×390×340mm |
460×460×430mm |
|
Material |
U-Shaped stainless fiber-glass enclosure and metal grille in black |
|||
|
Mounting Way |
Wall mounting stainless bracket is supplied |
|||
