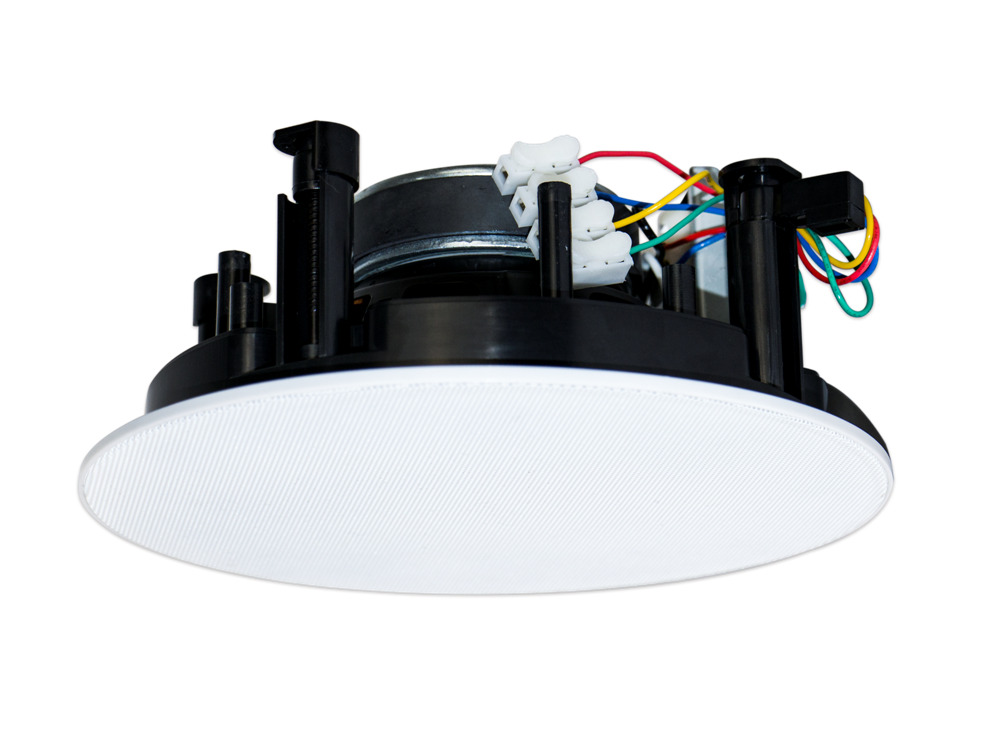

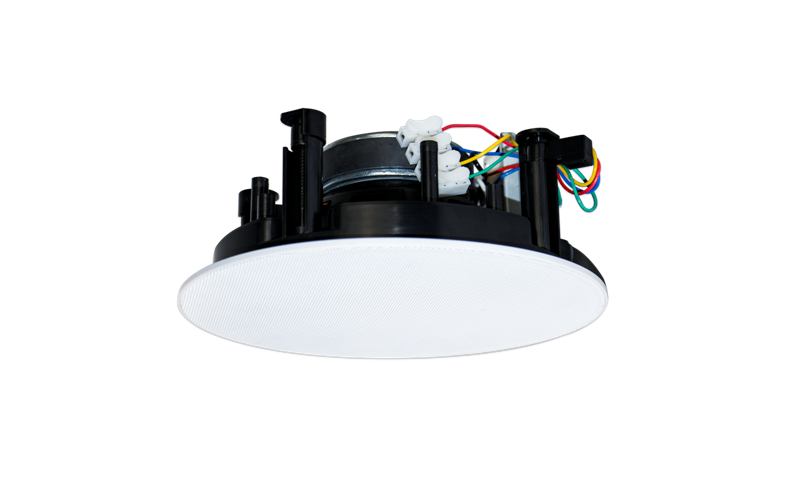

100V 5.25" 2-Way Ceiling Speaker 20W CSK-512HT
CSK-512HT is professional ceiling speaker of 20W/10W/5W 100V 5.25" for PA system, commercial audio & public address use, with transformer, coaxial speaker.
Features:
- High grade slim line 2-way ceiling speaker
- 100V line ceiling speaker with transformer
- hi-flex polypropylene cone main driver for extended low frequency response
- 5.25” bass speaker with 1” tweeter
- Power taps of 20W-10W-5W
- Magnetic frameless grille& ABS baffle
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
- Options: CSK-512HTM (100V & 8 Ohm, with ABS back can); CSK-512HR ( 8 Ohm, with crossover)
Specifications:
|
Model |
CSK-512HT |
|
Description |
5.25” 2-Way Ceiling Speaker |
|
Power RMS 100V |
20W |
|
Power Taps 100V |
20W-10W-5W |
|
Sensitivity 1W/1m |
89dB |
|
MAX SPL |
101dB |
|
Frequency Response |
80-20KHz |
|
Finish |
Baffle: ABS, black; Grille: magnetic steel, white |
|
Speaker Driver |
5.25" bass +1" tweeter two way system |
|
Cutout Size |
Ø 180mm |
|
Dimensions |
Ø205×90mm |
|
Weight |
1.3Kg |
