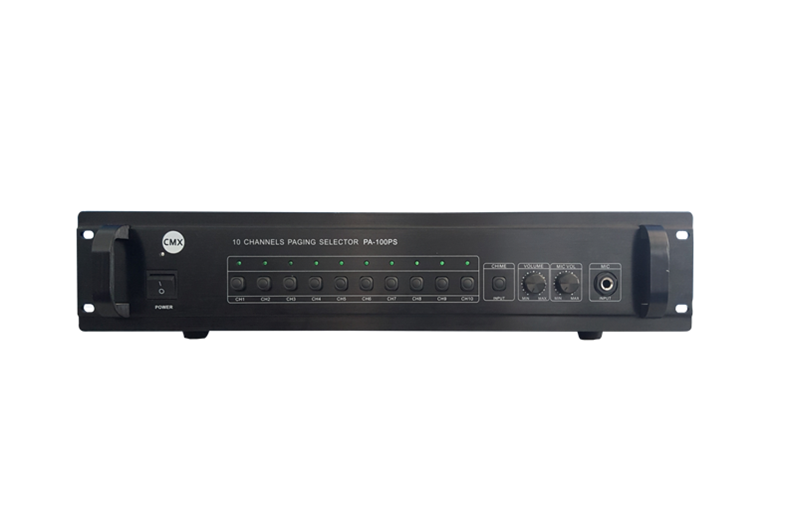

10 Zone Speaker Paging Selector PA-100PS
PA-100PS is public address speaker paging selector with 10 zone output, ideal for cost effective background music system with paging and voice alarm functions.
Features:
- 10 Zone paging selector with remote paging microphone.
- General announcement for PA system & public address system.
- Each paging system can connection 5 units remote paging microphones.
- One remote paging microphone could control one up to 20 paging controllers.
- Each paging selector capacity of 10 zone and expandable to 320 zones.
- With interface for fire alarm system.
- Power consumption of 10-15W
Specifications:
|
Model |
PA-100PS |
|
Description |
10 Zone Paging Selector |
|
Zone Capacity |
10 zone per unit and expandable to 320 zones |
|
Microphone Qty |
5 units of remote paging microphones |
|
Input |
MIC: 600Ω, 5mV, unbalanced: line: 10kΩ, 200mV, unbalanced |
|
Output |
Line: 10kΩ, 0.775V (0 dB), unbalanced |
|
Frequency Response |
30-15k Hz (± 3 dB) |
|
THD |
<0.01% at 1kHz |
|
S/N |
>72dB |
|
Alarm Input |
0V short-circuit contact |
|
Alarm Output |
0V short-circuit contact |
|
Power Supply |
AC 220-240V ± 10% 50-60Hz |
|
Power Consumption |
10~15W |
|
Dimension (W×D×H) |
88×483×350mm |
|
N.W |
6.32kg |
